Architectural Applications of SRMB Realfabrica Hollow Sections

Architecture asks a structural section to do two jobs at once: carry load safely, and look right doing it. A hollow section used behind a glass facade, in an exposed staircase, or as a partition frame doesn't get hidden inside a wall the way a lot of structural steel does, so its finish, straightness, and dimensional accuracy matter just as much as its strength rating.

Why Architectural Projects Specify SRMB Realfabrica

Three things matter more in architectural work than in almost any other application: a surface finish that doesn't need extra preparation before painting or coating, dimensional consistency that holds across an entire facade or staircase run, and a supplier who can be verified against the material actually delivered to site.

SRMB Realfabrica sections are rolled from hot rolled coil produced at SRMB Srijan's own integrated steel plant in Durgapur, West Bengal, a facility classified as a Primary Steel Producer by the Joint Plant Committee, Ministry of Steel. Because the same billet, coil, and Cold Formed ERW process feeds every shape we manufacture, an architect specifying square sections for a partition frame and circular sections for the staircase railing on the same project is drawing from one consistent chemistry and one quality system, not two different supply chains.

Every batch is checked on a Digital Universal Testing Machine and a Spectrometer before it leaves the plant, under our PAWS Technology framework: Physical uniformity, Accurate sizing, Weld quality, and Surface strength. For architectural work specifically, that surface strength and finish matter in a practical way: our sections leave the plant with a smooth, black finish, no oiling or varnishing, so they're ready for whatever site applied coating, paint, or powder coat a project calls for, without an extra degreasing step.

Architectural Applications

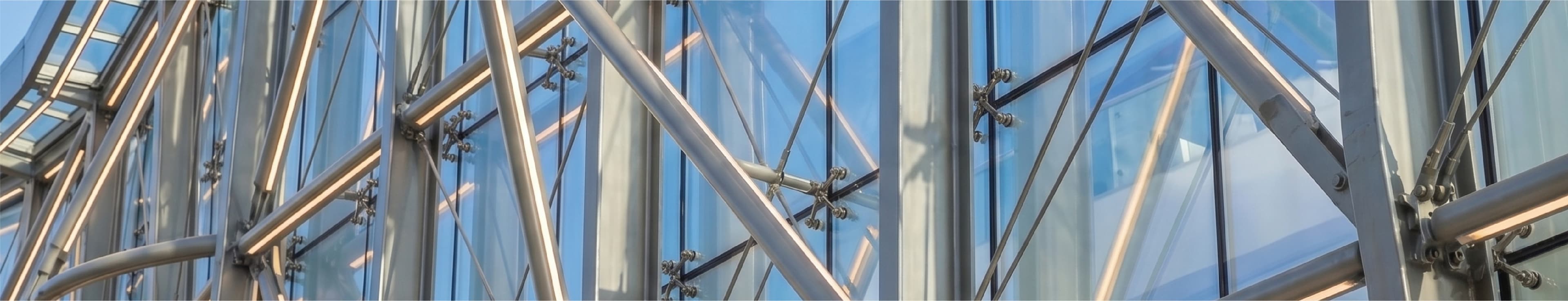

Glass curtain wall framing in hollow section

Shape Guidance

Square and rectangular hollow sections are the standard choice for curtain wall mullions and transoms, because their flat faces give a glazing contractor a true, even surface to seat gaskets, pressure plates, and sealant against. A section with even the smallest twist or bow becomes visible the moment glass panels go up against it, which is why dimensional accuracy carries more weight in this application than in almost any hidden structural use. Rectangular sections are typically favoured for mullions that need extra stiffness along the vertical span, while square sections suit transoms and secondary framing where load is more evenly distributed.

Why Our Sections Hold Up Here

SRMB Realfabrica square and rectangular sections are manufactured to IS 4923, with dimensional tolerances held to plus or minus one percent of nominal size (minimum plus or minus 0.50mm) and squareness held to 90 degrees plus or minus 2 degrees. On a facade running dozens of metres, that consistency is what keeps a curtain wall's sightlines straight instead of drifting section to section.

A Finishing Note

Curtain wall framing is almost always fully enclosed once glazing is complete, so sealing the open ends of every cut length with a welded end plate before installation is worth building into the fabrication sequence. Left open, ends can trap condensation from the building's interior side over the structure's working life, which is avoidable with this one extra step regardless of which manufacturer's sections are used.

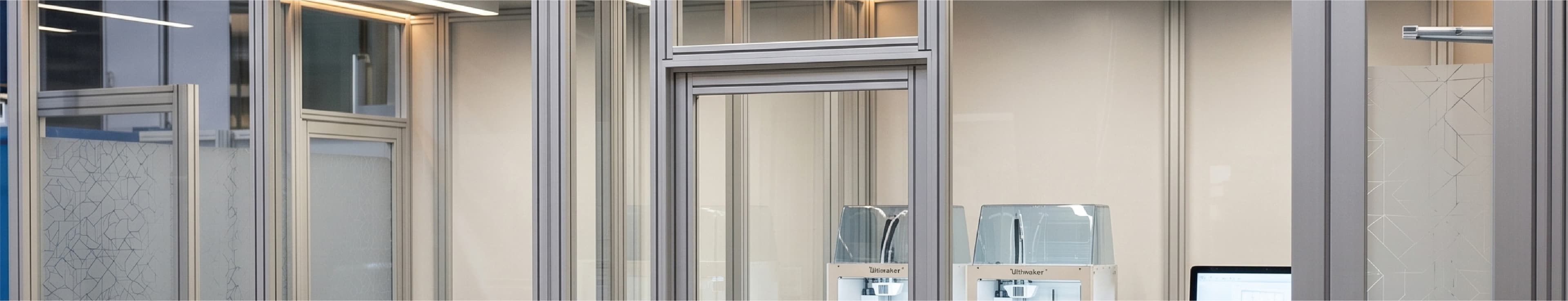

Partition frames in hollow section

Shape Guidance

Square and rectangular sections are the common choice for partition studs and head/sill tracks, since their flat faces give a straightforward surface to screw or clip cladding material to directly, something a circular section can't offer without additional adaptor brackets. Rectangular sections are typically specified where a partition needs to resist lateral push, such as in high traffic corridors, while square sections suit lighter, purely space dividing partitions.

Why Our Sections Hold Up Here

Because SRMB Realfabrica square and rectangular sections share the same IS 4923 conformity and hot rolled coil source, a fit out contractor sourcing both shapes for a single interior fit out gets one consistent strength grade (YST 210 or YST 240) across the whole partition system, rather than reconciling mill certificates from two suppliers.

A Fabrication Note

Because interior partition framing is fabricated and installed indoors, corrosion is a lower priority here than in exposed architectural work, but weldability still matters for site speed. SRMB Realfabrica sections can be welded with standard MS electrodes without preheating, which keeps interior fit out schedules, often the tightest phase of a commercial build, moving.

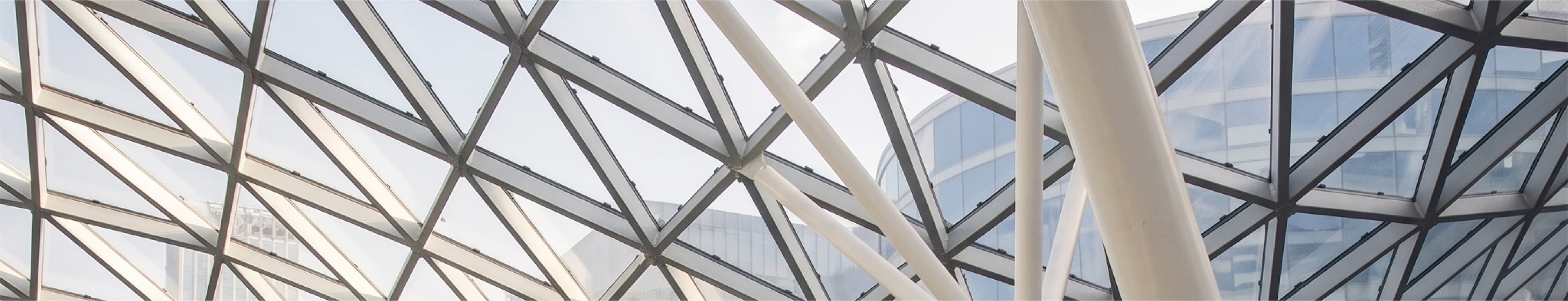

Space frame structure in hollow section

Shape Guidance

Circular hollow sections are the traditional choice for space frame members, particularly the diagonal and node connecting members, because a space frame experiences load arriving from multiple, constantly shifting directions, and a circular profile resists bending and buckling equally well regardless of which direction that load comes from. Square hollow sections are also used, especially for primary chord members running along a space frame's main span, where a flat face simplifies the node connection detailing.

Why Our Sections Hold Up Here

Space frame design typically pushes a large number of relatively slender members to their buckling limit rather than their yield limit, which makes consistent wall thickness and straightness across every length even more important than raw strength grade. SRMB Realfabrica's Cold Formed ERW manufacturing process, feeding from the same controlled IS 10748 chemistry coil across every batch, keeps that consistency intact across the hundreds of individual members a single space frame structure can require.

A Design Note

Because hollow sections resist bending moments on both axes better than open sections of similar weight, they bend and curve more easily without losing structural performance, which is part of why space frame roofs are able to take the sweeping, curved forms often seen in atrium and canopy design, rather than being restricted to flat, faceted geometry.

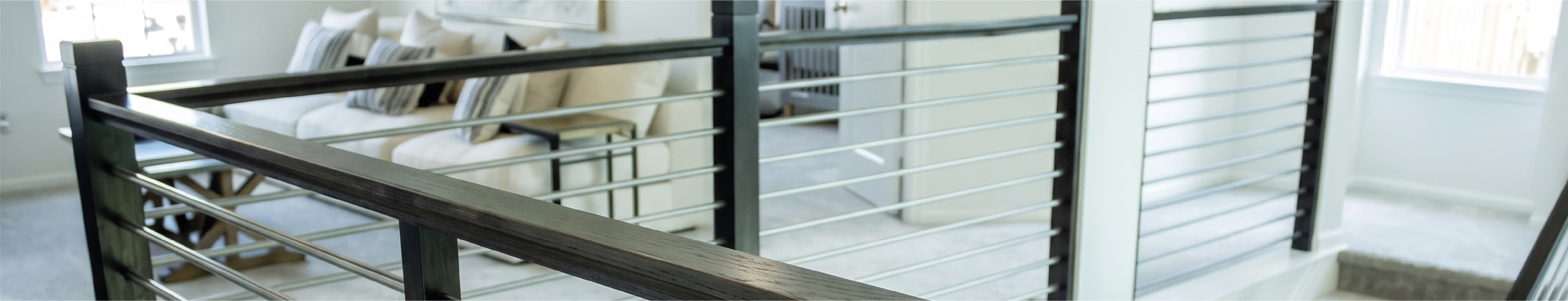

Guard rails and staircases in hollow section

Shape Guidance

Circular hollow section is the standard choice for handrails and balustrade posts, for a simple ergonomic reason: a rounded profile is comfortable to grip and doesn't present a sharp edge the way a square or rectangular section can. Circular sections are also more forgiving under repeated, incidental contact, resisting sharp denting better than a flat faced section exposed to the same use. For staircase stringers, which carry the actual step load rather than handhold contact, square and rectangular sections are more commonly used, since their flat faces simplify welding treads and risers directly onto the frame.

Why Our Sections Hold Up Here

SRMB Realfabrica circular hollow sections are manufactured to IS 3601 across tube designations WT 160, WT 210, WT 240, and WT 310, giving a fabricator a strength grade to match the specific railing application, from a light internal balustrade through to a heavier duty external guard rail. Our smooth, black surface finish also matters directly here: railing fabricators typically apply a site finish, paint, powder coat, or polish, straight onto the section, and a clean mill finish with no oiling residue means less prep work before that final coat goes on.

A Safety Note

Guard rails and external staircases are almost always exposed to weather, so sealing the open ends of every handrail and post with a welded end cap is worth specifying at fabrication stage, both to keep moisture out of the section over its service life and to remove the sharp open edge a cut, unsealed tube end otherwise presents.

Fabrication and On-Site Considerations for Architectural Steel

Architectural steel usually passes through more hands than structural steel hidden inside a building envelope: a fabricator forms it, a contractor erects it, and in many cases a finishing trade paints, coats, or polishes it afterward. A few practical points are worth building into your specification and fabrication planning, regardless of which of the four applications above you're working on.

Cutting and welding: SRMB Realfabrica sections can be welded using standard MS electrodes without any preheating step, which keeps fabrication schedules moving on projects where architectural steel is often on the critical path near project handover. Clean, square cut ends, achieved with an end facing machine rather than a hand grinder, also matter more visually in architectural work, since cut ends are frequently left exposed at railing terminations and frame joints.

Handling and transport: Bundles are strapped with high tensile metal strips at despatch, which helps sections arrive at a fabrication shop or site straight and undamaged. For architectural work specifically, straightness on arrival matters more than in general structural use, since a section that's been bowed or dented in transit is harder to disguise once it's painted and installed as a visible element.

Coating compatibility: Because SRMB Realfabrica sections leave the plant with a black finish and no residual oil or varnish, they accept primer, paint, and powder coating without an additional degreasing pass, something worth confirming with any manufacturer whose sections you're specifying for exposed work, since an oiled surface can cause coating adhesion problems later.

Shape Selection Guide

Architectural ApplicationRecommended ShapeTypical GradeWhy
Glass curtain wall framesSquare or Rectangular (IS 4923)YST 210 / YST 240Flat faces seat glazing gaskets and pressure plates evenly
Partition framesSquare or Rectangular (IS 4923)YST 210 / YST 240Flat faces suit direct cladding fixing; lightweight for repositioning
Space framesCircular, with Square for chords (IS 3601 / IS 4923)WT 160 to WT 310 / YST 210 / YST 240Circular resists multi-directional buckling at connecting nodes
Guard rails and staircasesCircular for rails, Square/Rectangular for stringersWT 160 to WT 310Rounded profile for grip and dent resistance on handrails

This table is a starting reference. Final shape, size, thickness, and grade should always be confirmed against your structural engineer's load calculation, and our technical team is available to help match a specification to your drawings.

Why Choose SRMB Realfabrica for Architectural Projects

  • One supplier for every shape. Square, rectangular, and circular sections are manufactured at the same integrated plant, so a facade contractor, interior fit out team, and railing fabricator on the same project can all source from SRMB Realfabrica.
  • Primary Steel Producer manufacturing. Classified by the Joint Plant Committee, Ministry of Steel, meaning the coil behind every architectural section is rolled from our own billet, not bought externally.
  • IS code conformity. Square and rectangular sections to IS 4923, circular sections to IS 3601, general structural tube to IS 1161.
  • PAWS Technology quality control, checked with Digital UTM and spectrometer testing on every batch, for the dimensional accuracy that matters most in exposed architectural work.
  • IMS certification covering ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018.
  • Site ready finish, smooth black surface with no oiling or varnishing, so sections are ready for whatever coating, paint, or polish your project specifies.
  • Traceable on site, with every length embossed with the SRMB brand mark and ISI logo specification number.

Share your drawings, required shape, size, and grade with our technical team, and we'll confirm availability and share a formal specification sheet. Contact us to get started.

Frequently Asked Questions

Square and rectangular hollow sections are generally preferred for glass curtain wall mullions and transoms, since their flat faces give glazing contractors a true, even surface to seat gaskets and pressure plates against along the full facade run.

Circular hollow section is the standard choice for guard rails and handrails, because its rounded profile is comfortable to grip and resists denting better than a flat faced section under repeated contact.

Yes. Square and rectangular hollow sections are widely used for partition framing, since their flat faces allow cladding materials like glass, laminate, or plasterboard to be fixed directly to the frame.

Circular hollow sections resist bending and buckling equally in every direction, which suits space frame members that carry load arriving from multiple, constantly shifting angles through a triangulated lattice.

Staircase stringers typically use square or rectangular hollow sections for their flat welding faces, while circular sections are used for handrails. Exact size depends on span and load, confirmed against a structural engineer's calculation.

Yes. Sections leave the plant with a smooth black finish and no oiling or varnishing, making them ready for site applied paint, powder coating, or polish typically specified for exposed architectural steel.

SRMB Realfabrica circular hollow sections are manufactured under IS 3601 across WT 160, WT 210, WT 240, and WT 310 tube designations, allowing fabricators to match strength grade to the specific railing application.

Yes, for anything exposed to weather. Sealing cut ends with a welded end cap keeps moisture out of the section over its service life and removes the sharp edge an open, unsealed end otherwise presents.

Yes. Because hollow sections resist bending moments well on both axes, they bend and curve more easily than open sections of similar weight, which supports the curved rooflines and facades common in modern architectural design.

Square and rectangular architectural hollow sections conform to IS 4923, circular sections conform to IS 3601, and general structural tube also references IS 1161.

Yes. The same IS certified, Primary Steel Producer manufactured sections are used for hidden structural framing and exposed architectural work, with shape and finish selected to suit whichever application applies.

Choose square or rectangular sections where flat mounting faces are needed, such as glazing or cladding fixing, and circular sections where a rounded, gripable, or multi-directional load bearing profile is needed, such as railings or space frames.
